7. Dockerfile
7.1 Docker 构建过程
构建步骤：
- 编写 dockerfile 文件
- docker build 构建镜像
- docker run 运行镜像
- docker push 发布镜像
基础知识：
- 每个保留关键字（指令）都必须是大写字母
- 指令从上到下顺序执行
- #表示注释
- 每个指令都会创建一个镜像层
7.2 Docker 指令
- FROM :基础镜像, 从这里开始构建
- MAINTAINER: 镜像是谁写的，姓名+邮箱
- RUN: 镜像构建的时候需要运行的命令
- ADD: 添加内容，如果加 tomcat 之类的
- WORKDIR: 工作目录
- VOLUME: 挂载目录
- EXPOSE: 暴露端口
- CMD： 指定容器启动时，要运行的命令, 只有最后一个会生效，可被替代
- ENTRYPOINT: 指定容器启动时，要运行的命令，可以追加命令
- ONBUILD: 当构建一个被继承 Dockerfile 这个时候就会运行 ONBUILD 的指令
- COPY: 雷士 ADD ，将我们文件拷贝到镜像中
- ENV: 构建的时候设置环境变量
7.3 构建一个 centos

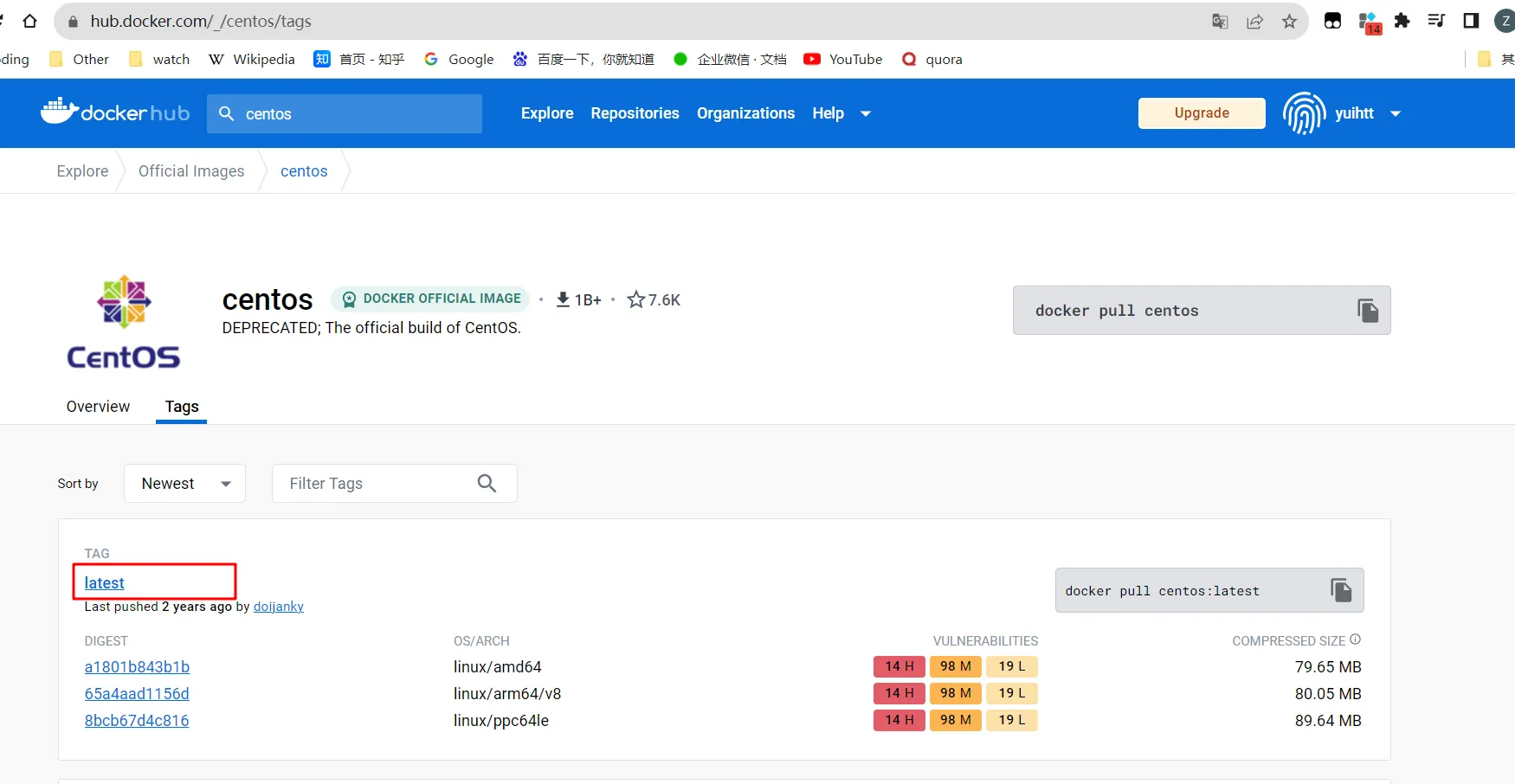

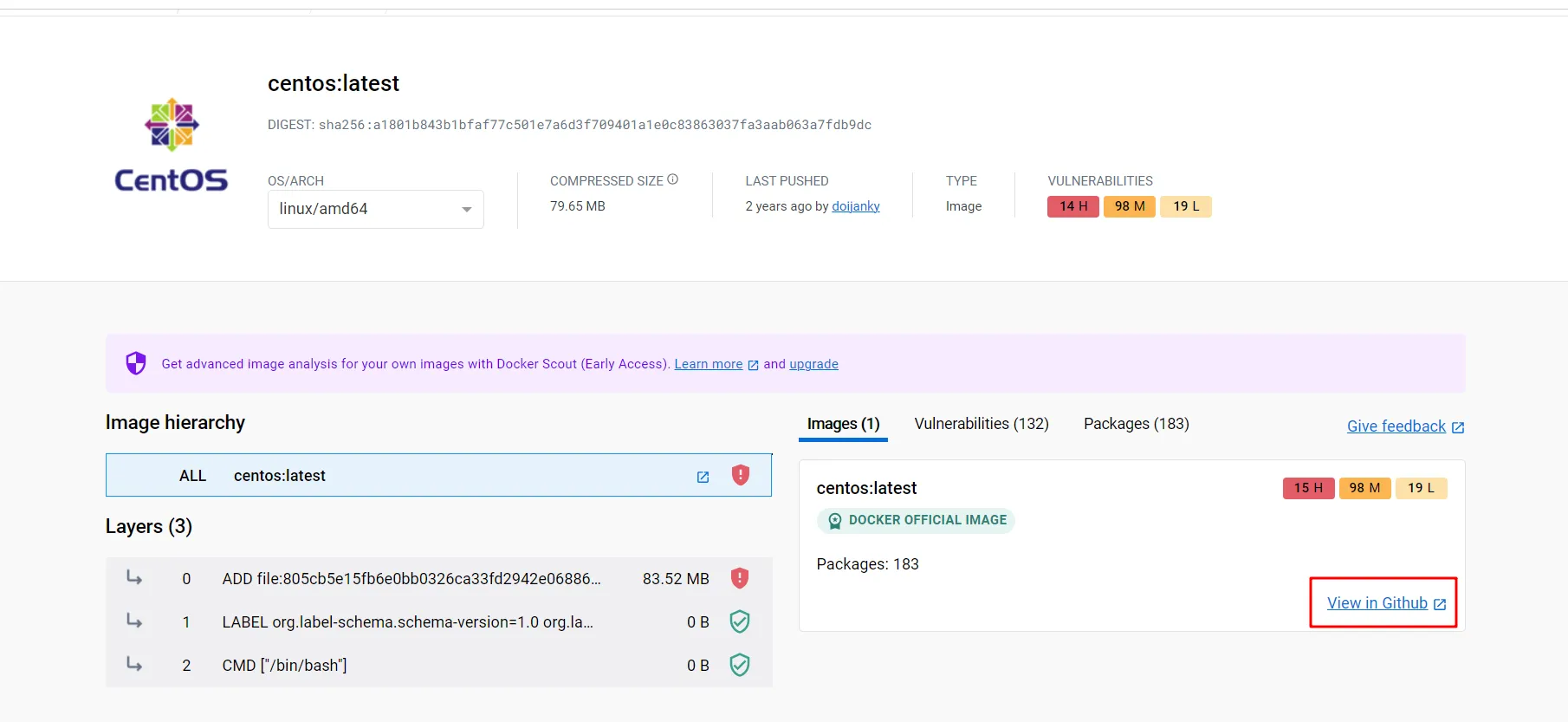

从 docker hub 点进官方的 dockerfile 看看
dockerfileFROM scratch ADD centos-8-x86_64.tar.xz / LABEL \ org.label-schema.schema-version="1.0" \ org.label-schema.name="CentOS Base Image" \ org.label-schema.vendor="CentOS" \ org.label-schema.license="GPLv2" \ org.label-schema.build-date="20210915" CMD ["/bin/bash"]
构建自己的centos
编写dockerfile
shell[root@hecs-152658 dockerfile]# pwd /root/test/dockerfile [root@hecs-152658 dockerfile]# vim dockerfile01
dockerfile# dockerfile FROM centos MAINTAINER YUI<22222@qq.com> ENV MYPATH /usr/local WORKDIR $MYPATH RUN /bin/sh -c yum -y install vim RUN /bin/sh -c yum -y install net-tools EXPOSE 80 CMD echo $MYPATH CMD echo '----end----' CMD /bin/bash
构建镜像
shell[root@hecs-152658 dockerfile]# docker build -f ./dockerfile01 -t centos-1 . [+] Building 1.1s (8/8) FINISHED docker:default => [internal] load build definition from dockerfile01 0.0s => => transferring dockerfile: 262B 0.0s => [internal] load .dockerignore 0.0s => => transferring context: 2B 0.0s => [internal] load metadata for docker.io/library/centos:latest 0.0s => [1/4] FROM docker.io/library/centos 0.0s => CACHED [2/4] WORKDIR /usr/local 0.0s => [3/4] RUN /bin/sh -c yum -y install vim 0.4s => [4/4] RUN /bin/sh -c yum -y install net-tools 0.5s => exporting to image 0.1s => => exporting layers 0.1s => => writing image sha256:7d3ce4a60ac0d3b6e00f7684decd9cbd5311a2a9ead8e 0.0s => => naming to docker.io/library/centos-1 0.0s
启动镜像
shell# 启动容器看看
[root@hecs-152658 dockerfile]# docker run -it centos-1
# 这里目录自然到 WORKDIR 配置上
[root@2bdc9799a5e5 local]# pwd
/usr/local
[root@2bdc9799a5e5 local]# [root@hecs-152658 dockerfile]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2bdc9799a5e5 centos-1 "/bin/sh -c /bin/bash" 24 seconds ago Up 23 seconds 80/tcp sleepy_khorana
#查看构建过程
[root@hecs-152658 dockerfile]# docker history centos-1
IMAGE CREATED CREATED BY SIZE COMMENT
7d3ce4a60ac0 7 minutes ago CMD ["/bin/sh" "-c" "/bin/bash"] 0B buildkit.dockerfile.v0
<missing> 7 minutes ago CMD ["/bin/sh" "-c" "echo '----end----'"] 0B buildkit.dockerfile.v0
<missing> 7 minutes ago CMD ["/bin/sh" "-c" "echo $MYPATH"] 0B buildkit.dockerfile.v0
<missing> 7 minutes ago EXPOSE map[80/tcp:{}] 0B buildkit.dockerfile.v0
<missing> 7 minutes ago RUN /bin/sh -c /bin/sh -c yum -y install net… 435kB buildkit.dockerfile.v0
<missing> 7 minutes ago RUN /bin/sh -c /bin/sh -c yum -y install vim… 435kB buildkit.dockerfile.v0
<missing> 8 minutes ago WORKDIR /usr/local 0B buildkit.dockerfile.v0
<missing> 8 minutes ago ENV MYPATH=/usr/local 0B buildkit.dockerfile.v0
<missing> 8 minutes ago MAINTAINER YUI<22222@qq.com> 0B buildkit.dockerfile.v0
<missing> 22 months ago /bin/sh -c #(nop) CMD ["/bin/bash"] 0B
<missing> 22 months ago /bin/sh -c #(nop) LABEL org.label-schema.sc… 0B
<missing> 22 months ago /bin/sh -c #(nop) ADD file:805cb5e15fb6e0bb0… 231MB
7.4 ENTRYPOINT 与 CMD
shell# CMD
[root@hecs-152658 dockerfile]# vim dockerfileCmd
[root@hecs-152658 dockerfile]# cat dockerfileCmd
FROM centos
CMD ["ls", "-a"]
# ENTRYPOINT
[root@hecs-152658 dockerfile]# cp dockerfileCmd dockerfileEntrypoint
[root@hecs-152658 dockerfile]# vim dockerfileEntrypoint
[root@hecs-152658 dockerfile]# cat dockerfileEntrypoint
FROM centos
ENTRYPOINT ["ls", "-a"]
# build
[root@hecs-152658 dockerfile]# docker build -f dockerfileCmd -t centos-cmd .
[+] Building 0.1s (5/5) FINISHED docker:default
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load build definition from dockerfileCmd 0.0s
=> => transferring dockerfile: 70B 0.0s
=> [internal] load metadata for docker.io/library/centos:latest 0.0s
=> CACHED [1/1] FROM docker.io/library/centos 0.0s
=> exporting to image 0.0s
=> => exporting layers 0.0s
=> => writing image sha256:7d202bdf002be182b794b7f2b4c90c4fe3560c3ac4f8c 0.0s
=> => naming to docker.io/library/centos-cmd 0.0s
[root@hecs-152658 dockerfile]# docker build -f dockerfileEntrypoint -t centos-entrypoint .
[+] Building 0.1s (5/5) FINISHED docker:default
=> [internal] load build definition from dockerfileEntrypoint 0.0s
=> => transferring dockerfile: 84B 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load metadata for docker.io/library/centos:latest 0.0s
=> CACHED [1/1] FROM docker.io/library/centos 0.0s
=> exporting to image 0.0s
=> => exporting layers 0.0s
=> => writing image sha256:b325f5b972337e763ad3b2c0f1a720eb2d5b11a39b3d8 0.0s
=> => naming to docker.io/library/centos-entrypoint
# test
# 运行容器看下输出是一致的
[root@hecs-152658 dockerfile]# docker run centos-cmd
.
..
.dockerenv
bin
dev
...
[root@hecs-152658 dockerfile]# docker run centos-entrypoint
.
..
.dockerenv
bin
dev
...
# 添加参数看看
# 添加 -l 显示文件明细
# 发现 cmd 命令添加的命令，会覆盖掉原来的指令，由于 -l 不是命令，所以报错了，改成 ls -l 后，确实没有 -a的效果了
# 而 entrypoint 可以通过添加 -l 追加参数
# CMD 添加 -l 报错
[root@hecs-152658 dockerfile]# docker run centos-cmd -l
docker: Error response from daemon: failed to create task for container: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: exec: "-l": executable file not found in $PATH: unknown.
ERRO[0000] error waiting for container:
# CMD 添加 ls -l 不现实隐藏文件了
[root@hecs-152658 dockerfile]# docker run centos-cmd ls -l
total 48
lrwxrwxrwx 1 root root 7 Nov 3 2020 bin -> usr/bin
drwxr-xr-x 5 root root 340 Jul 30 07:12 dev
drwxr-xr-x 1 root root 4096 Jul 30 07:12 etc
...
# CMD 添加 ls -al
[root@hecs-152658 dockerfile]# docker run centos-cmd ls -al
total 56
drwxr-xr-x 1 root root 4096 Jul 30 07:14 .
drwxr-xr-x 1 root root 4096 Jul 30 07:14 ..
-rwxr-xr-x 1 root root 0 Jul 30 07:14 .dockerenv
lrwxrwxrwx 1 root root 7 Nov 3 2020 bin -> usr/bin
...
# entrypoint 添加 -l 参数，结果与 ls -al 结果一致
[root@hecs-152658 dockerfile]# docker run centos-entrypoint -l
total 56
drwxr-xr-x 1 root root 4096 Jul 30 07:13 .
drwxr-xr-x 1 root root 4096 Jul 30 07:13 ..
-rwxr-xr-x 1 root root 0 Jul 30 07:13 .dockerenv
lrwxrwxrwx 1 root root 7 Nov 3 2020 bin -> usr/bin
...
7.5 tomcat 镜像构建
下载 tomcat 压缩包
shell# 下载压缩包，这里太慢了我就直接从本地上传了
[root@hecs-152658 file]# pwd
/root/test/file
[root@hecs-152658 file]# wget https://dlcdn.apache.org/tomcat/tomcat-10/v10.1.11/bin/apache-tomcat-10.1.11.tar.gz
--2021-07-30 15:21:20-- https://dlcdn.apache.org/tomcat/tomcat-10/v10.1.11/bin/apache-tomcat-10.1.11.tar.gz
Resolving dlcdn.apache.org (dlcdn.apache.org)... 151.101.2.132, 2a04:4e42::644
Connecting to dlcdn.apache.org (dlcdn.apache.org)|151.101.2.132|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 12146928 (12M) [application/x-gzip]
Saving to: ‘apache-tomcat-10.1.11.tar.gz’
.11.tar.gz 10%[=> ] 1.19M 22.6KB/s eta 8m 34s ^C
[root@hecs-152658 file]# rm -rf *
[root@hecs-152658 file]# mv /root/apache-tomcat-10.1.11.tar.gz .
# 同时上传的还有 jdk， 最终目录如下
[root@hecs-152658 tomcat]# pwd
/root/test/tomcat
[root@hecs-152658 tomcat]# ls
apache-tomcat-10.1.11.tar.gz jdk-8u321-linux-x64.tar.gz jdk-17.0.8_linux-x64_bin.tar.gz
Dockerfile README.md
编写dockerfile
dockerfileFROM centos MAINTAINER Yui<786725551@qq.com> ENV MYPATH /usr/local WORKDIR $MYPATH COPY README.md . # ADD 命令会自动解压 ADD jdk-17.0.8_linux-x64_bin.tar.gz . ADD apache-tomcat-10.1.11.tar.gz . #RUN yum -y install vim ENV JAVA_HOME $MYPATH/jdk-17.0.8 ENV CLASS_PATH $JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar ENV CATALINA_HOME $MYPATH/apache-tomcat-10.1.11 ENV CATALINA_BASH $MYPATH/apache-tomcat-10.1.11 ENV PATH $PATH:$JAVA_HOME/bin:$CATALINA_HOME/lib:$CATALINA_HOME/bin EXPOSE 8080 CMD startup.sh && tail -F $CATALINA_HOME/logs/catalina.out
构建
shell# 这里 没有 -f dockerfile文件名，默认查找指定目录（命令最后一个参数 .） 下的 Dockerfile 文件
[root@hecs-152658 tomcat]# docker build -t my-tomcat01 .
[+] Building 7.5s (10/10) FINISHED docker:default
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 601B 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load metadata for docker.io/library/centos:latest 0.0s
=> [1/5] FROM docker.io/library/centos 0.0s
=> [internal] load build context 1.3s
=> => transferring context: 182.42MB 1.3s
=> CACHED [2/5] WORKDIR /usr/local 0.0s
=> CACHED [3/5] COPY README.md . 0.0s
=> [4/5] ADD jdk-17.0.8_linux-x64_bin.tar.gz . 3.9s
=> [5/5] ADD apache-tomcat-10.1.11.tar.gz . 0.3s
=> exporting to image 1.9s
=> => exporting layers 1.9s
=> => writing image sha256:04d907c1c66be9364a40855eb777d5082691d40292ef1 0.0s
=> => naming to docker.io/library/my-tomcat01
启动与查看
shell# -p 8080:8080 内部端口绑定到宿主机端口
# --name tomcat01 命名容器
# -v /root/test/tomcat/logs:/usr/local/apache-tomcat-10.1.11/logs tomcat日志目录指定挂载到本机目录
# -v /root/test/tomcat/webapps:/usr/local/apache-tomcat-10.1.11/webapps tomcat web目录指定挂载到本机目录
[root@hecs-152658 tomcat]# docker run -d -p 8080:8080 --name tomcat01 -v /root/test/tomcat/logs:/usr/local/apache-tomcat-10.1.11/logs -v /root/test/tomcat/webapps:/usr/local/apache-tomcat-10.1.11/webapps my-tomcat01
7f16995683b6f0e6ba2196c9e6f646b3cfbd9c20cfb4bac6396d2e86f8cf4e9e
[root@hecs-152658 tomcat]# ls
apache-tomcat-10.1.11.tar.gz jdk-8u321-linux-x64.tar.gz webapps
Dockerfile logs
jdk-17.0.8_linux-x64_bin.tar.gz README.md
[root@hecs-152658 tomcat]# tail -10f logs/catalina.out
30-Jul-2021 08:01:32.816 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Dcatalina.base=/usr/local/apache-tomcat-10.1.11
30-Jul-2021 08:01:32.816 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Dcatalina.home=/usr/local/apache-tomcat-10.1.11
30-Jul-2021 08:01:32.818 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djava.io.tmpdir=/usr/local/apache-tomcat-10.1.11/temp
30-Jul-2021 08:01:32.819 INFO [main] org.apache.catalina.core.AprLifecycleListener.lifecycleEvent The Apache Tomcat Native library which allows using OpenSSL was not found on the java.library.path: [/usr/java/packages/lib:/usr/lib64:/lib64:/lib:/usr/lib]
30-Jul-2021 08:01:33.151 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["http-nio-8080"]
30-Jul-2021 08:01:33.184 INFO [main] org.apache.catalina.startup.Catalina.load Server initialization in [589] milliseconds
30-Jul-2021 08:01:33.226 INFO [main] org.apache.catalina.core.StandardService.startInternal Starting service [Catalina]
30-Jul-2021 08:01:33.226 INFO [main] org.apache.catalina.core.StandardEngine.startInternal Starting Servlet engine: [Apache Tomcat/10.1.11]
30-Jul-2021 08:01:33.241 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-nio-8080"]
30-Jul-2021 08:01:33.271 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in [86] milliseconds
7.6 镜像发布
7.6.1 DockerHub
- 在 https://hub.docker.com/ 注册自己的账号
- 在服务器上登录
- push 镜像
docker login -u 用户名 -p 密码
登录
shell[root@hecs-152658 tomcat]# docker login -u 自己的用户名 -p 密码 WARNING! Using --password via the CLI is insecure. Use --password-stdin. WARNING! Your password will be stored unencrypted in /root/.docker/config.json. Configure a credential helper to remove this warning. See https://docs.docker.com/engine/reference/commandline/login/#credentials-store Login Succeeded
push
shell# 直接 push 失败，因为这样就直接推送到 library 目录下，这是没有权限的
[root@hecs-152658 tomcat]# docker push my-tomcat01:latest
The push refers to repository [docker.io/library/my-tomcat01]
4b6d7ca1b8fd: Preparing
2ae88d7d3429: Preparing
7feb3ba1ae0d: Preparing
5f70bf18a086: Preparing
74ddd0ec08fa: Preparing
denied: requested access to the resource is denied
# 先对镜像改名，添加上自己的库名，在push
[root@hecs-152658 tomcat]# docker tag my-tomcat01:latest yuihtt/my-tomcat01:1.0
[root@hecs-152658 tomcat]# docker push yuihtt/my-tomcat01:1.0
...
直接 push 失败，因为这样就直接推送到 library 目录下，这是没有权限的，需要规范命名 用户名/镜像名
7.6.2 阿里云镜像

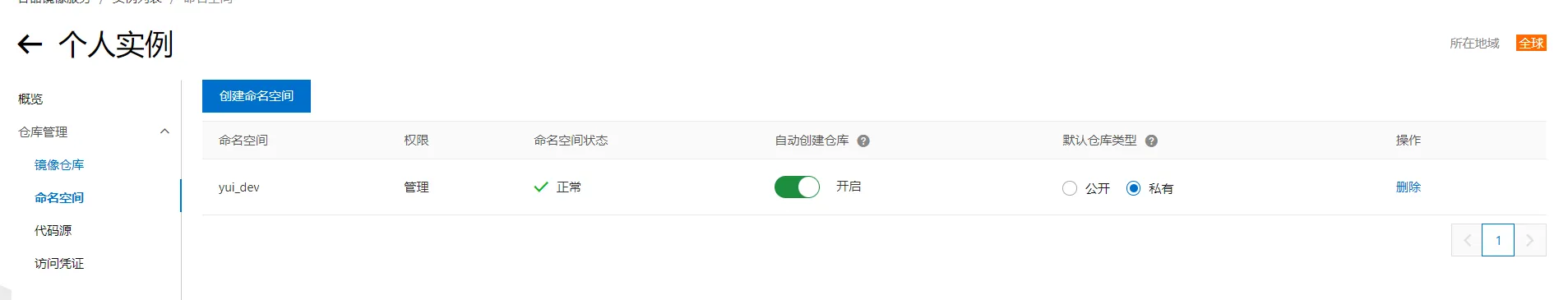

- 创建命名空间

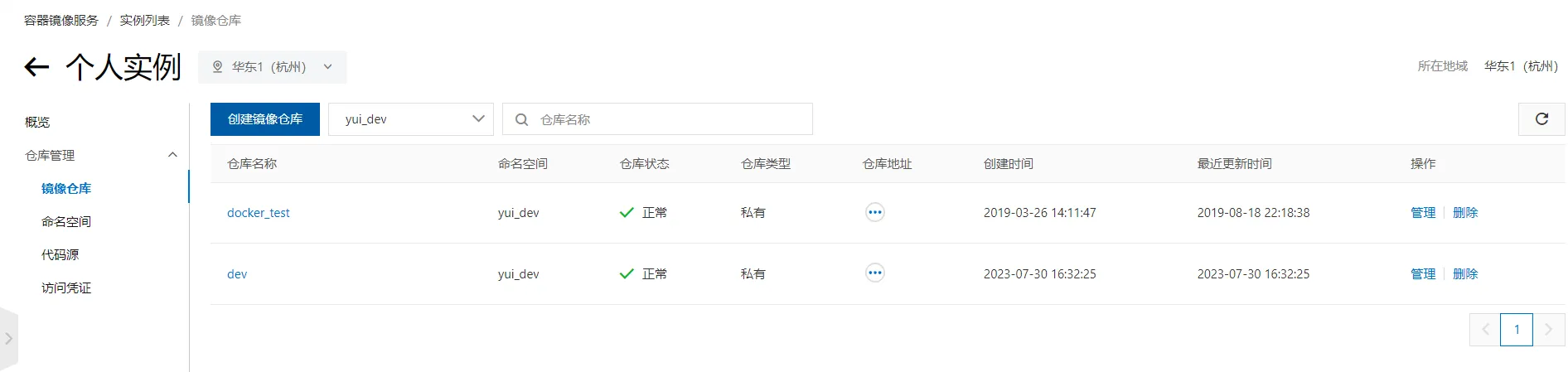

- 创建仓库

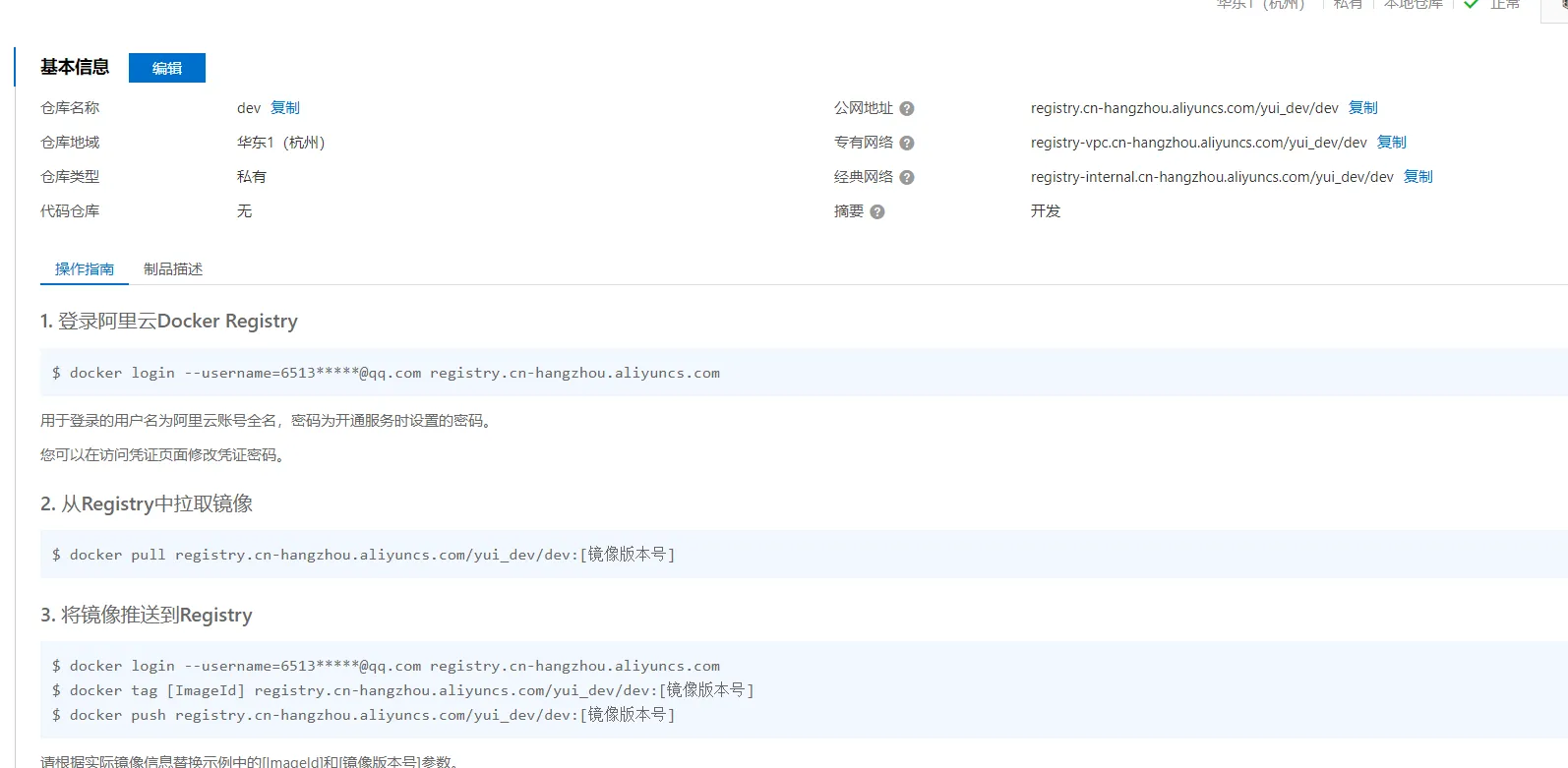

- 根据操作指南处理
shell[root@hecs-152658 tomcat]# docker login --username=xxxx registry.cn-hangzhou.aliyuncs.com Password: WARNING! Your password will be stored unencrypted in /root/.docker/config.json. Configure a credential helper to remove this warning. See https://docs.docker.com/engine/reference/commandline/login/#credentials-store Login Succeeded [root@hecs-152658 tomcat]# docker tag my-tomcat01 registry.cn-hangzhou.aliyuncs.com/yui_dev/dev:1.0 [root@hecs-152658 tomcat]# docker push registry.cn-hangzhou.aliyuncs.com/yui_dev/dev:1.0 The push refers to repository [registry.cn-hangzhou.aliyuncs.com/yui_dev/dev] 4b6d7ca1b8fd: Pushed 2ae88d7d3429: Pushing 5.518MB/318MB 7feb3ba1ae0d: Pushed 5f70bf18a086: Pushed 74ddd0ec08fa: Pushing 9.872MB/231.3MB

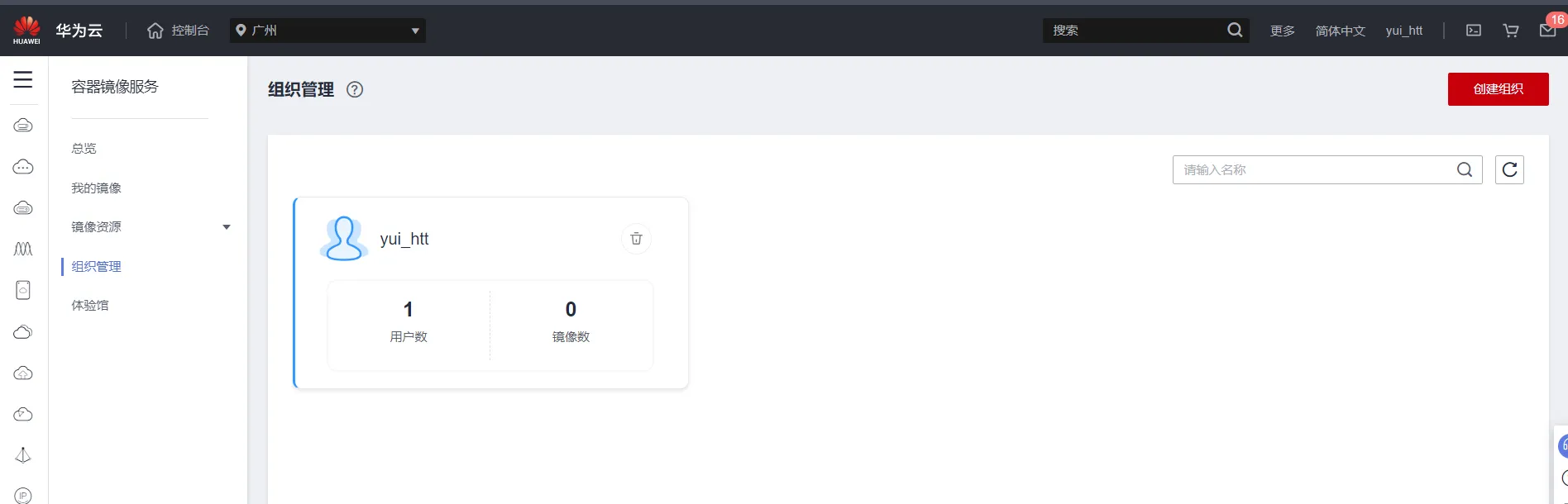

7.6.3 华为云
- 创建组织
- 登录
- 修改和推送

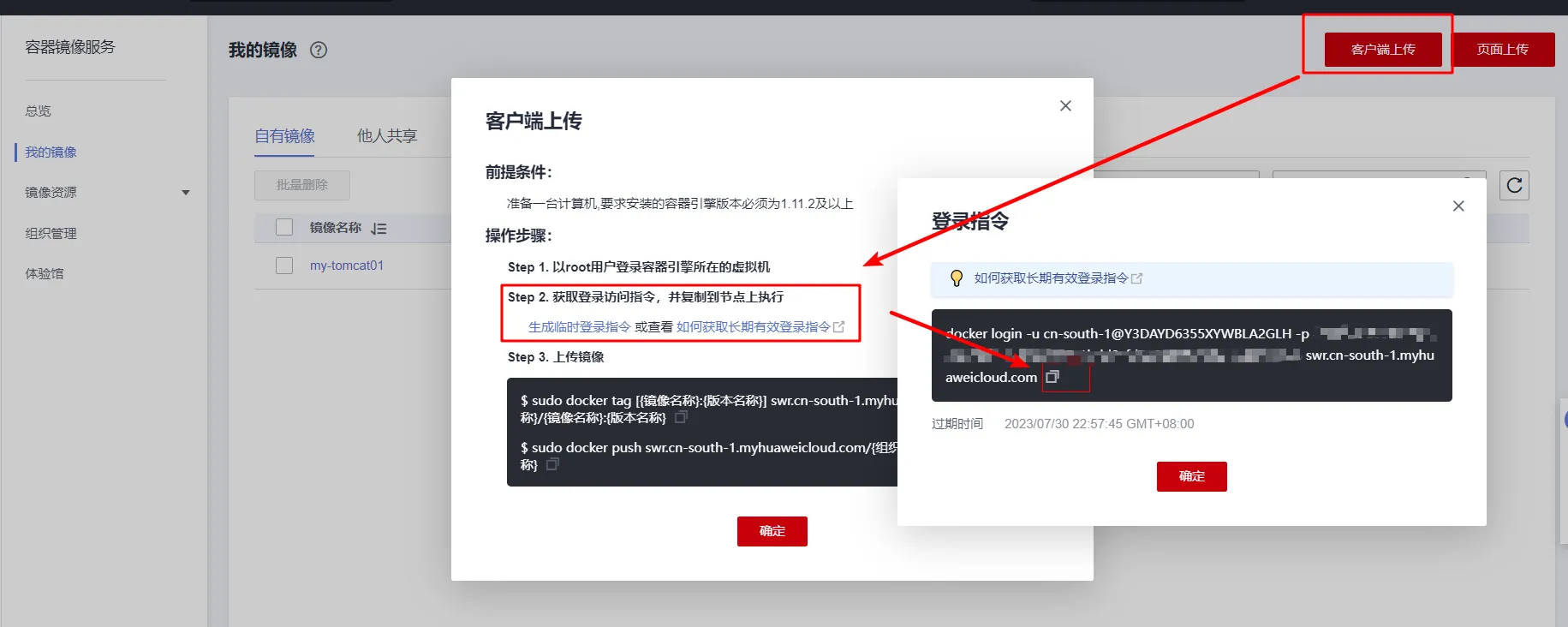

根据 step3 操作
shell[root@hecs-152658 tomcat]# docker tag my-tomcat01:latest swr.cn-south-1.myhuaweicloud.com/yui_htt/my-tomcat01:1.0 [root@hecs-152658 tomcat]# docker push swr.cn-south-1.myhuaweicloud.com/yui_htt/my-tomcat01:1.0 The push refers to repository [swr.cn-south-1.myhuaweicloud.com/yui_htt/my-tomcat01] 4b6d7ca1b8fd: Pushed 2ae88d7d3429: Pushed 7feb3ba1ae0d: Pushed 5f70bf18a086: Pushed 74ddd0ec08fa: Pushed 1.0: digest: sha256:958d6614d75422c5a413219370981d10e2fa45c062d8f994dd10ea1f65869c5d size: 1367 [root@hecs-152658 tomcat]#
*. 总结
